SWITCH6 (SW6) - INSTALL GUIDE#

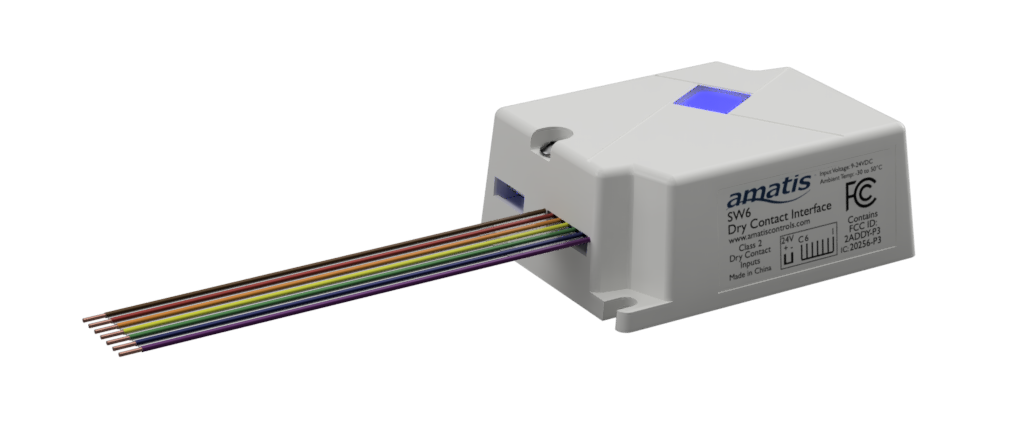

Product Image

Introduction#

About This Guide#

This guide provides instructions for installing the Switch6, an Amatis wireless input device. In addition to the step-by-step installation process, this guide provides instructions on how to configure the Switch6, as well as some basic troubleshooting steps.

Product Overview#

The Switch6 is a wireless 6-input switch interface, capable of connecting to up to 6 switches or relays. It connects to wireless networks via the Amatis Border Router (AMBR).

  • Standard toggle or momentary contact inputs.
  • Trigger programmed scenes with switches, sensors, and other devices.
  • On-board LED drivers for each input for driving LED indicators.
  • Cloud connection via AMBR, uploading real-time data from your site to the Amatis config app.

Installation#

Parts List#

Before getting started with the installation process, it's important to make sure all the necessary components are included. Here's what should be found inside the box:

  • (1) Switch6

Placement#

Follow these guidelines when deciding on where to install the Sensor1:

  • When used with a wall switch/keypad, the Switch6 should be installed behind the device it is interfacing with.
  • The Switch6 should be installed within 200' of an AMBR or other wireless node.

    Distance Limitations

    The Amatis system supports communication ranges up to 200' with a clear line of site. Obstacles such as walls or floors will impact the communication ranges significantly.

Wiring#

Follow the wiring diagram to connect the Switch6:

Wiring Diagram

Note

The common wire should be used for all inputs.

Labeling & MAC Capture#

After installing any Amatis wireless device, it is imperative to note the device ID with the associated load/fixture/device. This is how the devices will be identified in the programmed. It is also a good idea to label any Amatis load controllers with the load they are controlling.

Note

The device ID can be found on the device’s packaging or the device itself.

Initial Setup#

Necessary Parts#

Review the following list to ensure all necessary parts are available:

  1. An active AMBR within communication range of the Switch6.
  2. Active power to the Switch6.
  3. At least one input to the Switch6 wired to a switch or other device.

Device Configuration#

Perform the following steps to configure the device:

  1. Open up the Amatis App and navigate to the site.
  2. Open the Devices table and ensure a device with the ID noted in the previous step is active.
  3. Open the Device Details and configure the connected inputs:

Input Config

The device is now ready to be added to a location and programmed with the Amatis App.

Note

The device will show up in the Devices table along with the 6 inputs. Only add the inputs used for triggering scenes to the location or zone, and not the device itself.

Updating Firmware#

Perform the following steps to update the device's firmware:

  1. Open up the Amatis App and navigate to the site.
  2. Open the Devices table and find the device to be updated.
  3. Make sure the "Firmware Version" column is visible. If the firmware is out of date, it will show a yellow alert and yellow text.
  4. Click on the out of date firmware to request a firmware update.

    firmware_update

    Note

    Depending on how out of date the firmware is, the programming may need to be synced to the devices after a firmware update.

Basic Troubleshooting#

Perform the following steps for basic troubleshooting of the device:

  1. Verify the device is operating normally using the LED Troubleshooting Matrix below.
  2. Verify the Switch6 is detecting inputs by looking at the LED while activating an input.
  3. Power cycle the device by turning off the low voltage source, and turning it back on 30 seconds later.

LED Indicator Troubleshooting#

Use the following table to troubleshoot specific issues with the device based on the LED indicators:

LED Troubleshooting Matrix
LED Color SOLID FLASHING OFF
Blue Fault detected Device unable to communicate with an AMBR No power to device
Green Device communicating normally n/a Fault detected
Yellow n/a Single flash when an input is activated or device button is pressed n/a
Red n/a Single flash when an input is activated and there is a fault n/a

Normal Operation

BOLD description indicates normal operation.

Button Operation#

On the top of the Switch6, there is a button that also functions as the indicator LED.

Button Operation
PRESSES BEHAVIOR
10 Press Set the device to the default network profile

Technical Support#

If you experience any issues during installation or operation of this product, please contact our technical support team for assistance. Our technical support team is available via email at support@amatiscontrols.com. Please provide a detailed description of the issue you are experiencing, including any error messages or other relevant information.

Warranty#

All Amatis LED lighting products and controls come with a 5-year parts warranty, as well as labor per product up to a maximum of 50% of the material price for parts being replaced*. All parts are UL certified. Lamps are DLC certified, therefore eligible for utility incentives. We warrant that our products will be free from defects in material and workmanship for a 5-year period from the date of purchase. Defective products under warranty will be replaced with an equal or higher quality product.

Internet Connection

The Amatis Border Router (AMBR) connected to your affected device must have remained connected to the Amatis cloud via the Internet or cellular connection from the start of site commissioning to date of return request. Non-connected systems are eligible for a 2-year limited warranty (730 days) from shipment date, with the same remaining criteria.
