XSP-2-2000 - DATA SHEET#
Product Overview#
The XSP-2-200 X-PoE Panel is a high-capacity solution for low-voltage lighting, housing two X-PoE lighting controllers powered by a 2,000W DC supply. It provides consistent, efficient power for connected LED fixtures and includes DIN rail mounts for flexible accessory installation, making it ideal for scalable, advanced lighting applications.
Specifications#
| XSP-2-2000 SPECIFICATIONS | |
|---|---|
| Dimensions | 610 mm x 508 mm x 102 mm 24 in x 20 in x 4 in |
| Power Input | 90VAC to 264VAC Input |
| Power Output | (16) IEEE 802.3bt PoE++ / 2-CH X-PoE Lighting RJ45 Ports1 |
| Auxiliary Power Output | 12V 0.8A DC Power Output |
| Internal Power Supply | 2,000W 56VDC for (2) X-PoE Lighting Controllers2 |
| Maximum Power Consumption | 2,000W with all channels fully loaded at 100% |
| Environment | Operating Temp: 0°C to +40°C (32 to 104°F) Storage Temp: -20 to +40°C (-4 to +158°F) Humidity: 10% to 90% (non-condensing) |
| Certifications | UL 508A |
| Warranty | 5 Years |
Power Output
Maximum output power is dependant upon the forward voltage of the connected light engine.
Front Panel#

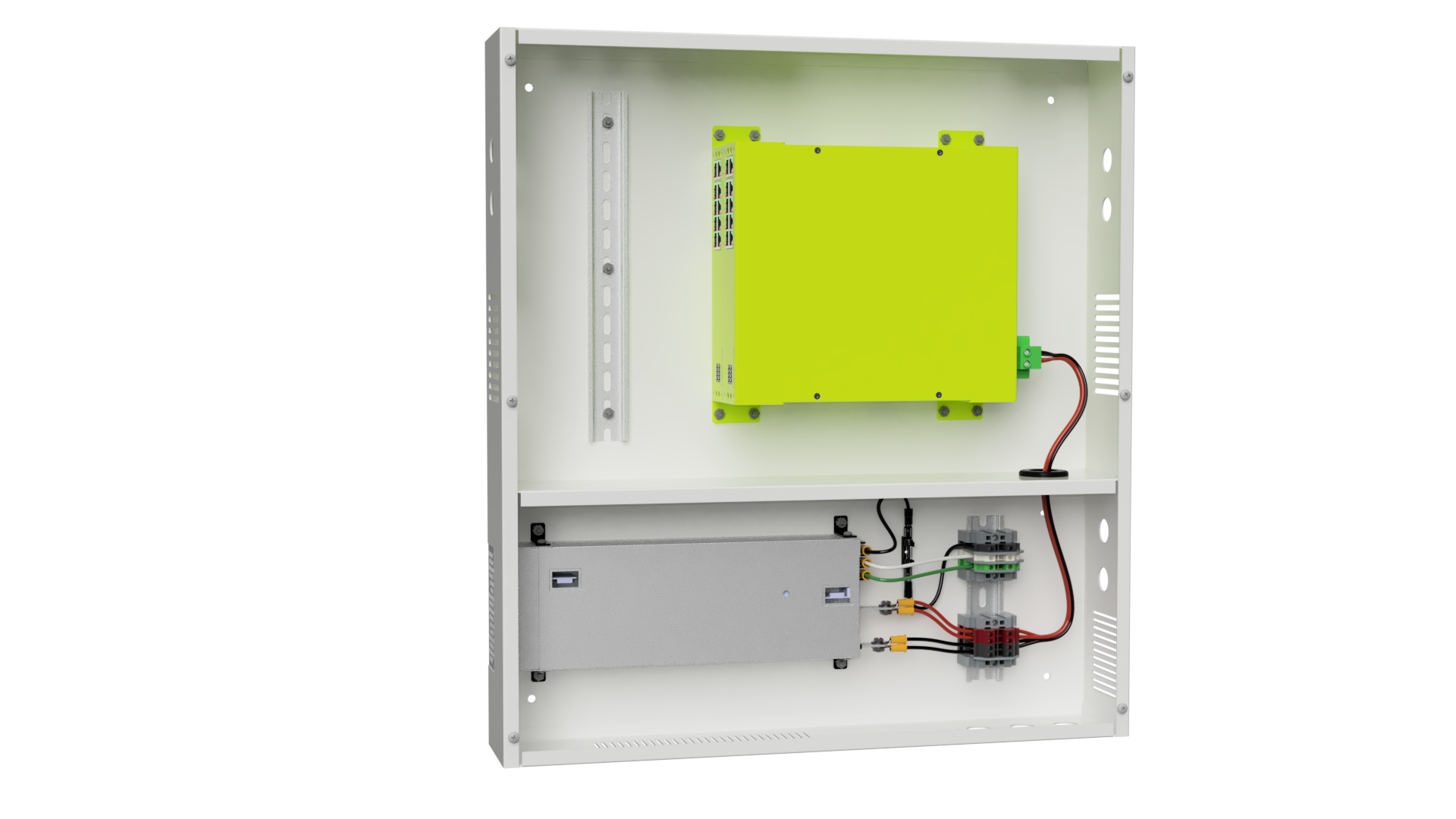

The XSP-2-2000 enclosure is shown below:
- (2) X-PoE Lighting Controllers
- Internal Power Supply
- Din-Rail Accessory Mount
- Auxiliary Power Output (not shown)
- Knockouts for Low Voltage DC Wiring
- Knockouts for AC Input
Din-Rail Accessory Mount
Powered electronics that dissipate heat cannot be installed inside the enclosure to retain the UL listing.
