XPOE-DCB-100 - DATA SHEET#
Product Overview#

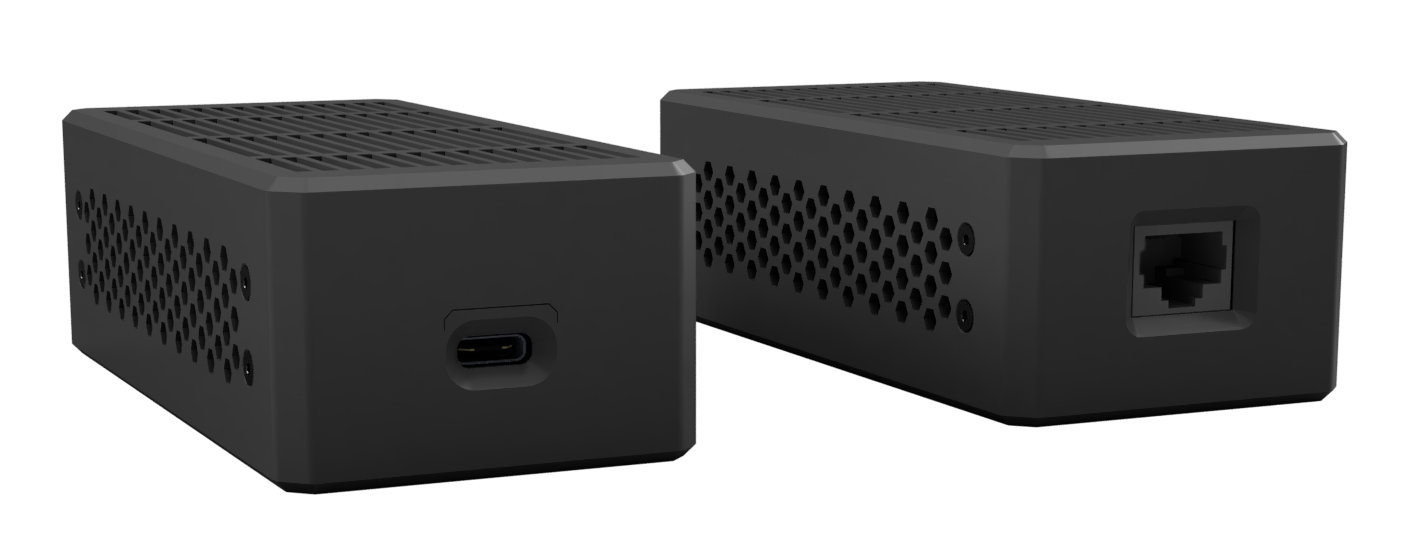

The XPOE-DCB-100 is a USB-C PD that delivers up to 100W of USB-C Power Delivery in a compact enclosure ideal for commercial and residential applications. Powered by a single X-PoE input, it enables high-efficiency energy distribution for USB-C devices without the clutter of traditional AC adapters. Designed for performance and passive cooling, the DCB is a flexible, install-anywhere solution for the DC Revolution.
Specifications#
| XPOE-DCB-100 SPECIFICATIONS | |
|---|---|
| Dimensions | 114.7 mm x 52.9 mm x 36 mm (4.52 in x 2.08 in x 1.42 in) |
| Weight | 0.29 kg (0.7 lbs) |
| Interfaces | (1) RJ45 X-PoE Input Port (1) USB-C Port1 |
| Voltage Input | 48VDC to 57VDC Input From X-PoE Port2 |
| Maximum Power Output | 100W |
| Environment | Operating Temp: 0°C to +40°C (32 to 104°F) Storage Temp: -20 to +40°C (-4 to +158°F) Humidity: 10% to 90% (non-condensing) |
| Certifications | UL 62368-1, CSA C22.2#62368-1 (pending) |
| Warranty | 1 Year |
Front Panel#

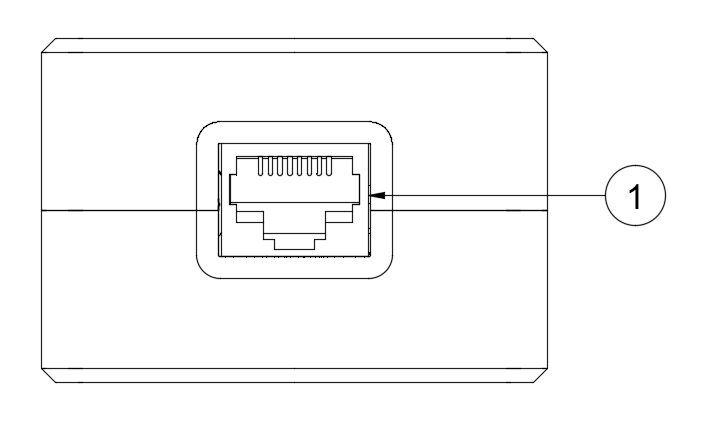

The XPOE-DCB-100 front panel is shown below:
- X-PoE Power Input
Rear Panel#

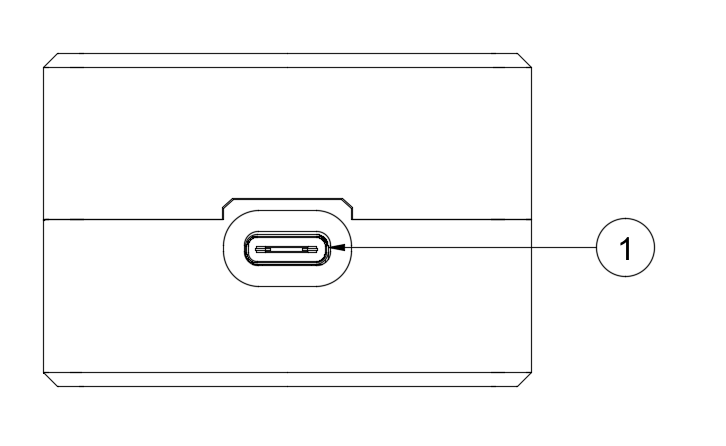

The XPOE-DCB-100 rear panel is shown below:
- USB-C Output
